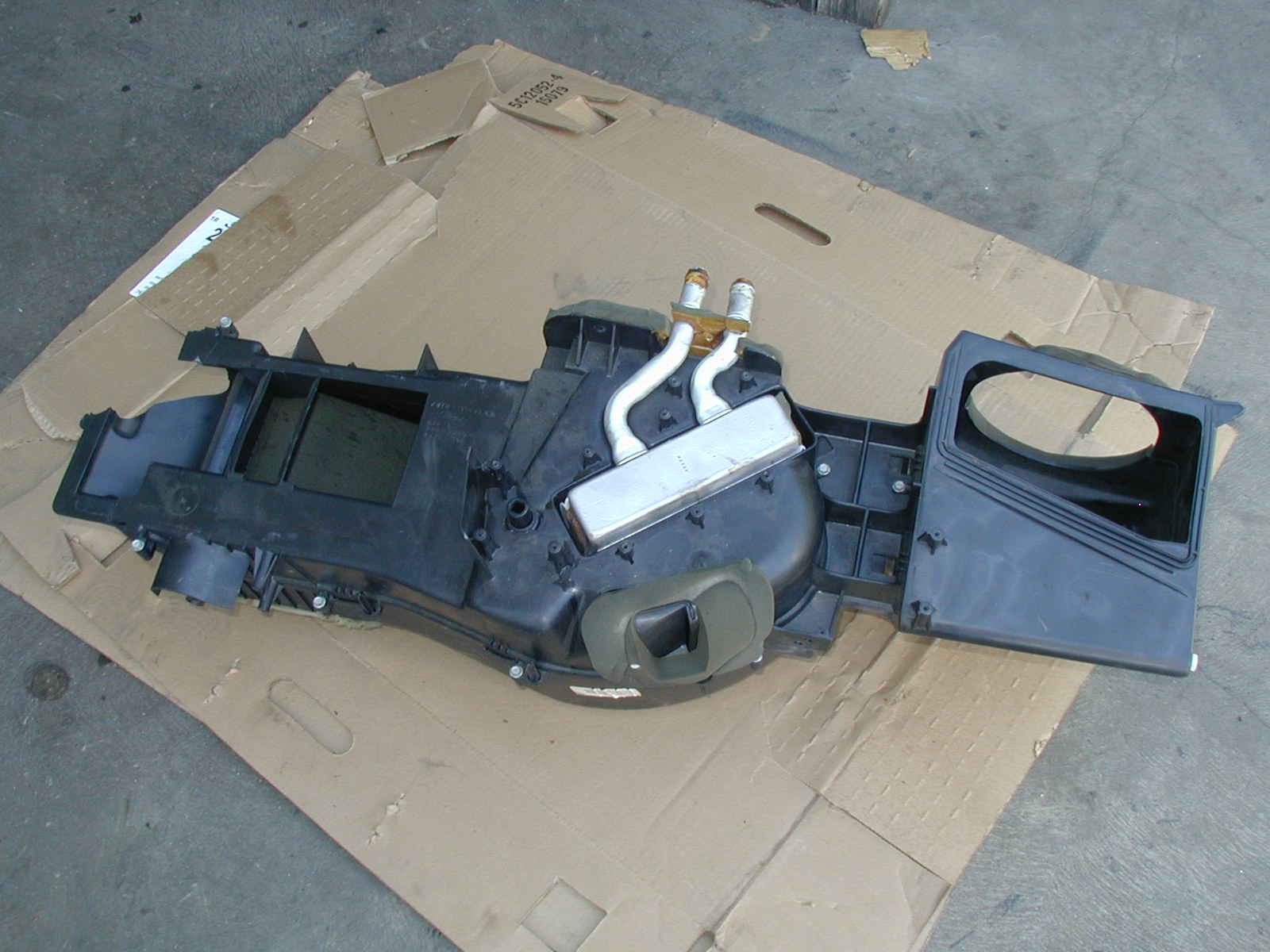

The HVAC matrix. In this picture, the air moves from right to left. The heater core is visible through the partially open temperature door.
Actuators now control door positions. No more cables.



Bad Air Flow

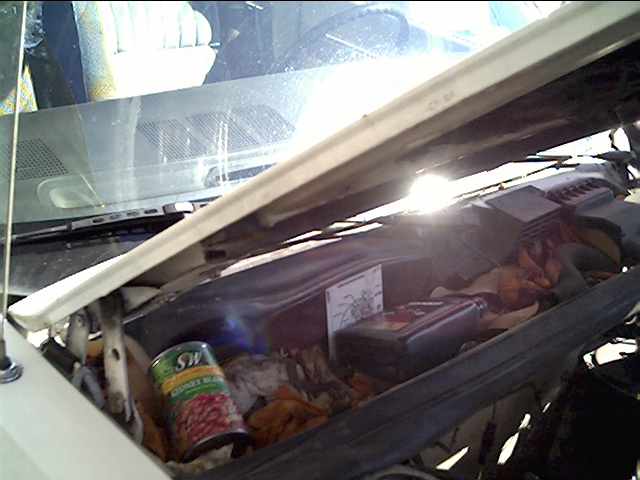

"A strange smell Sir?" Hmmm  " Not enough fresh air?" "Could it be the CAN of BEANS and QUART of OIL and 5 pounds of leaves blocking the air flow?

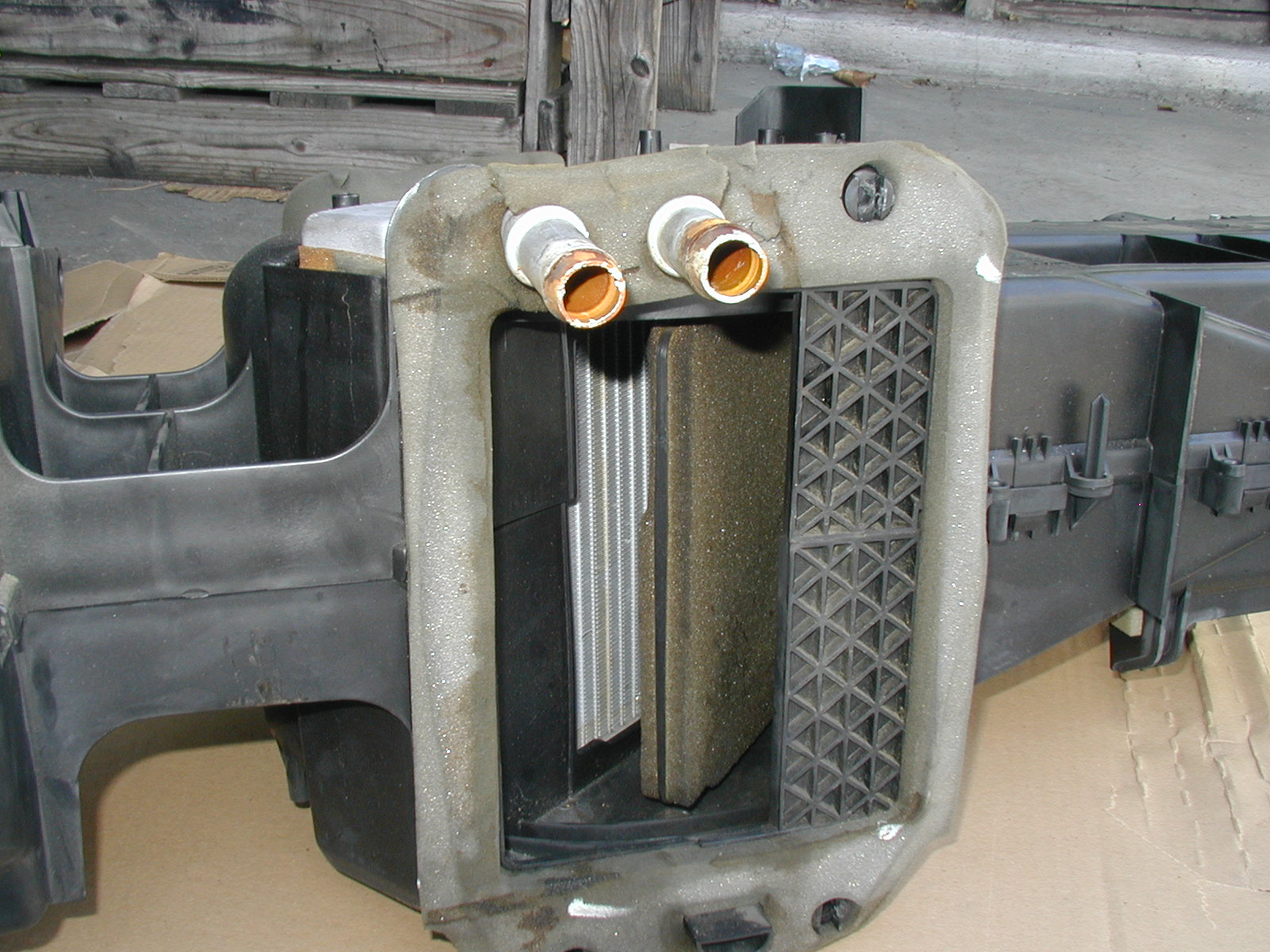

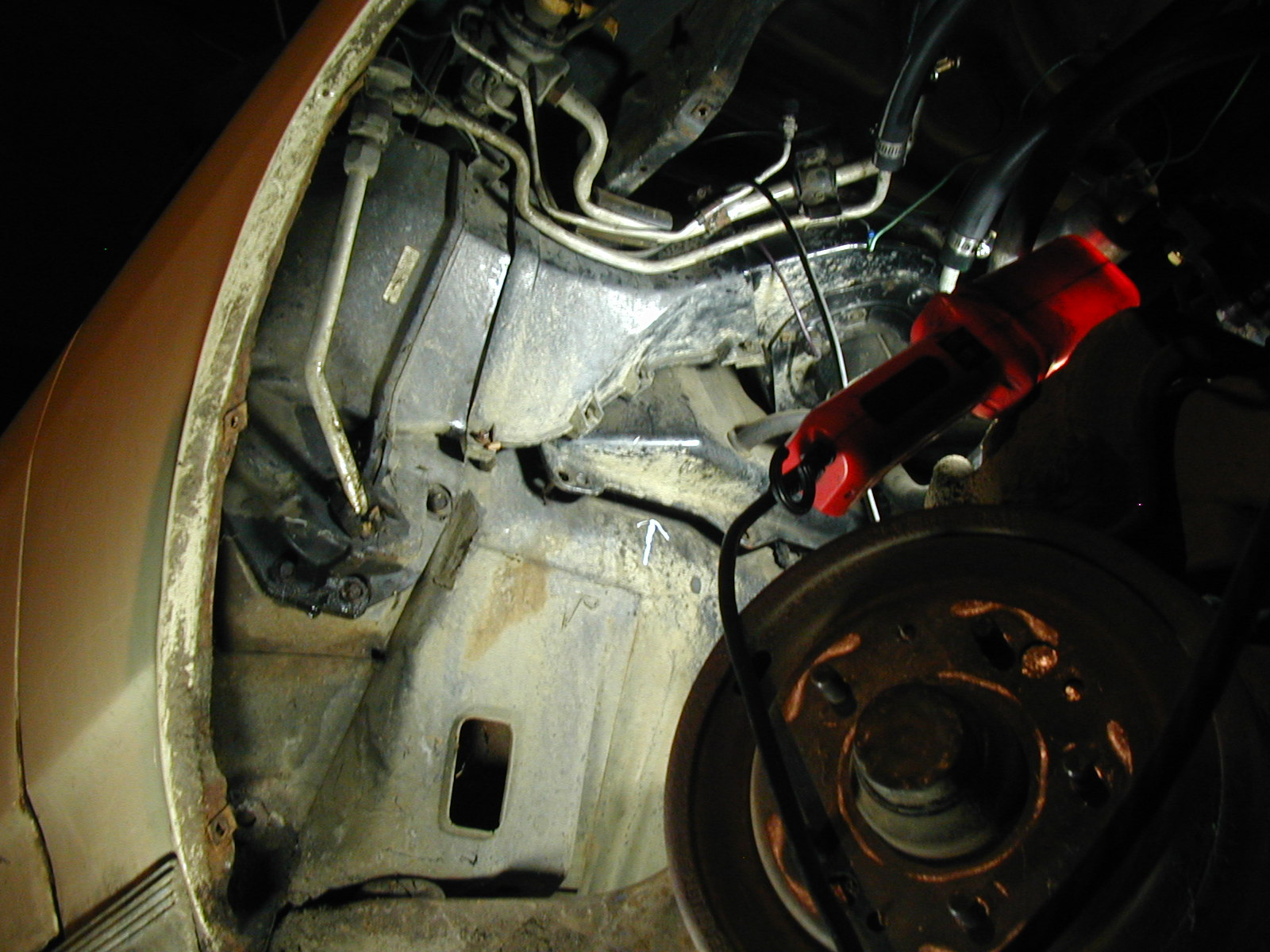

Years earlier, a leaking heater was replaced. Airflow was always deficient afterwards....  Could it be the huge gap and missing hardware?
